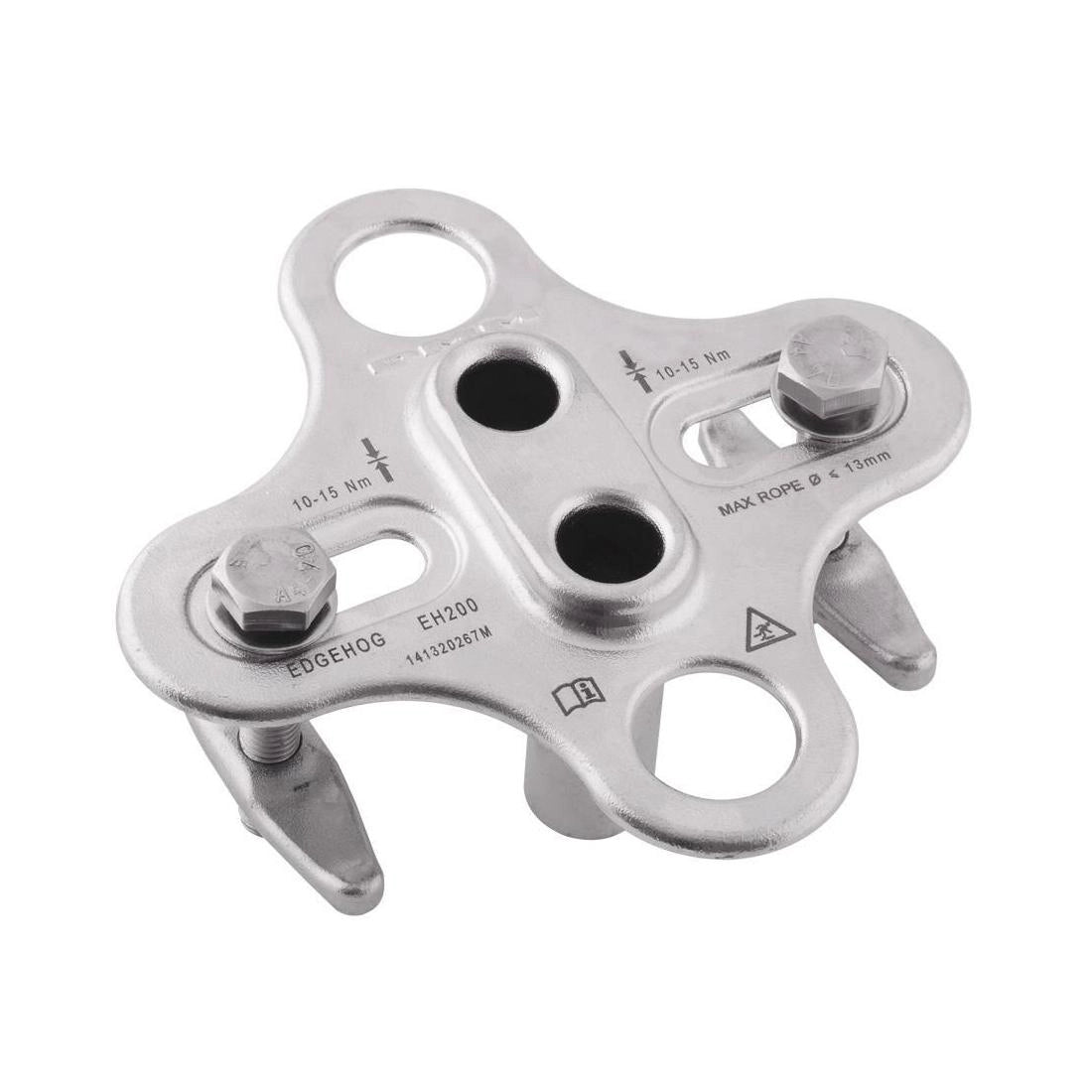

DMM Edgehog Stainless Steel Rope Protector

DMM Edgehog Stainless Steel Rope Protector

The DMM Edgehog Stainless Steel Rope Protector is a purpose-designed rope protection device developed for rope access applications where ropes pass through industrial floor grating. Ideal for offshore platforms, oil rigs, refineries, chemical plants and other industrial environments, the Edgehog provides a durable solution for protecting ropes from contact with grating edges.

Manufactured from marine-grade 316 stainless steel, the DMM Edgehog offers excellent corrosion resistance, making it particularly suited to harsh offshore and industrial environments. Its two rounded rope channels provide smooth contact surfaces to help reduce abrasion and potential rope damage. Adjustable fixing bolts accommodate different grating configurations, while the low-profile design helps minimise trip hazards.

Features

• Designed to protect ropes passing through industrial floor and deck grating
• Two rope channels with smooth, rounded edges to minimise rope abrasion
• Marine-grade 316 stainless steel construction for enhanced corrosion resistance
• Ideal for offshore platforms, refineries, chemical plants and industrial rope access
• Low-profile design helps minimise trip hazards
• Adjustable fixing bolts accommodate different grating sizes
• Secure installation using a 17mm spanner
• Suitable for ropes up to 13mm in diameter
• Integrated clip-in point for convenient transportation
• Robust construction for demanding industrial environments

Specifications

• Brand: DMM
• Product name: Edgehog
• Product type: Grating rope protector
• Material: Marine-grade 316 stainless steel
• Rope channels: 2
• Maximum rope diameter: 13mm
• Minimum grating opening: 24 x 58mm
• Maximum grating depth: 45mm
• Fixing mechanism: Adjustable bolts
• Installation tool: 17mm spanner
• Transport attachment: Integrated clip-in point
• Application: Industrial rope access and rope protection

Important: The DMM Edgehog is a rope protection device, not a rope anchor. Installation, rope routing and grating compatibility must be assessed in accordance with the manufacturer's instructions.

Downloads

Please refer to the DMM Edgehog product sheet for more information.
