AWAH Z3-FIRE Drill Powered Ascender

AWAH Z3-FIRE Drill Powered Ascender

The AWAH Z3-FIRE Drill Powered Ascender combines a drill-powered ascender, rescue descender and progress capture pulley in one compact device. Designed for professional rope access and rescue applications, it allows controlled ascent and descent using a compatible cordless drill.

By using a standard cordless drill instead of an integrated motor and battery, the Z3-FIRE reduces device weight and allows users to work within their preferred battery platform. It also incorporates dual self-locking safety mechanisms for professional work positioning and rescue use.

Features

• Combines a powered ascender, descender and progress capture pulley
• Operates with a compatible standard cordless drill
• Dual self-locking safety mechanism
• Compact and lightweight construction

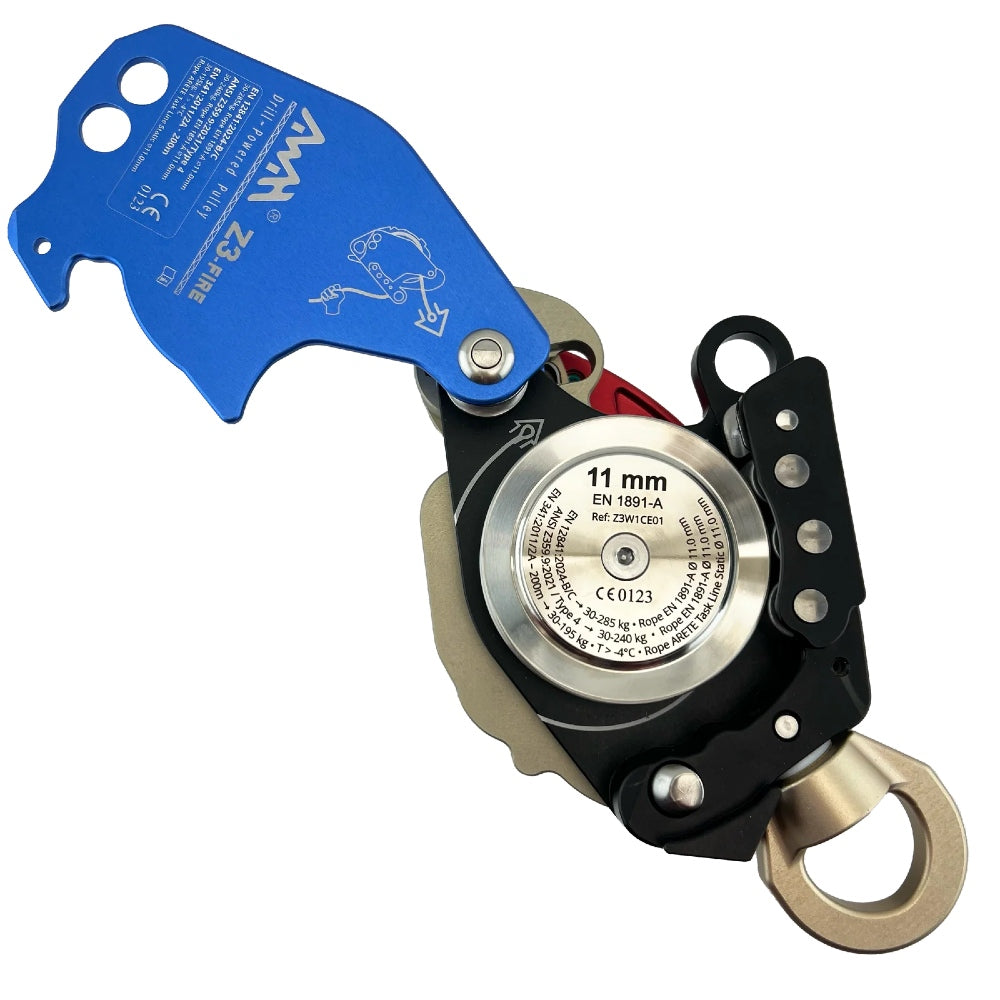

• Replaceable rope wheel for simplified maintenance
• Supplied with a certified 11 mm rope wheel
• Suitable for professional rope access and rescue applications

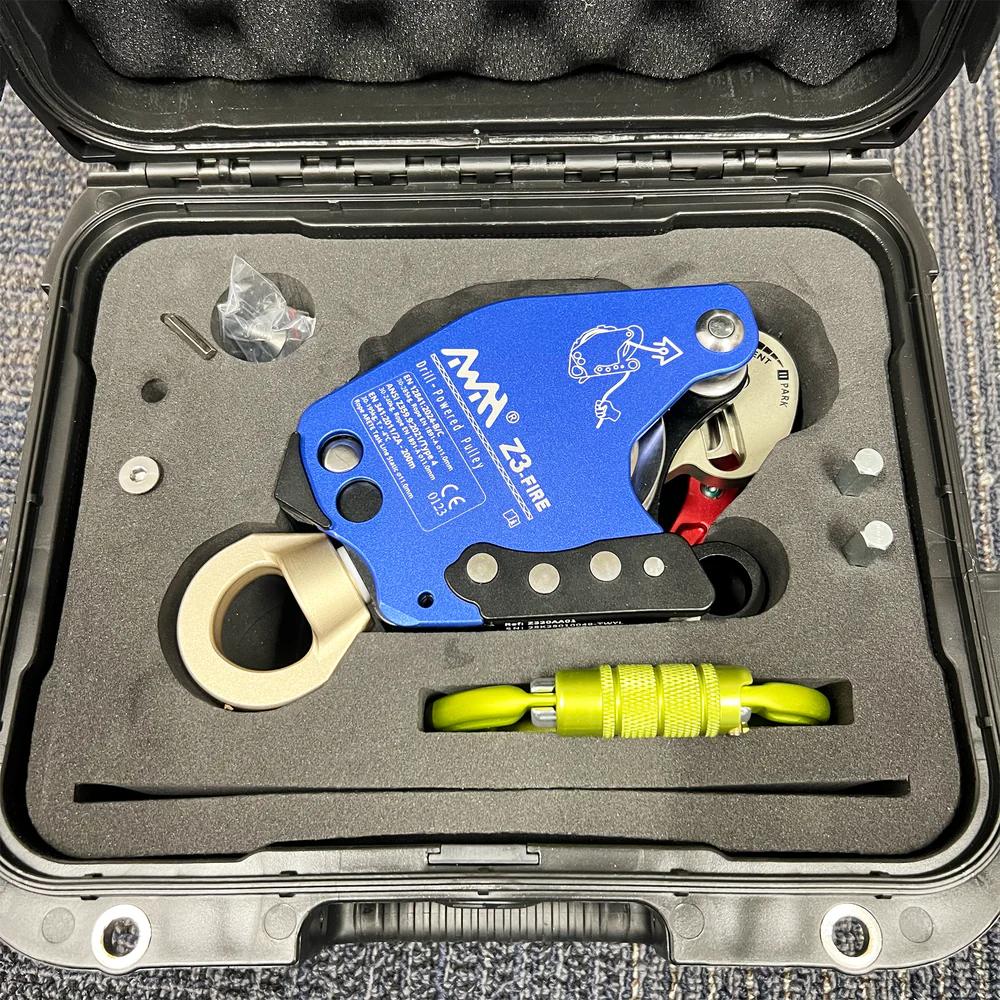

• Supplied in a protective carry case with accessories

Specifications

• Product type: Drill-powered ascender
• Brand: AWAH
• Model: Z3-FIRE
• Operation: Compatible cordless drill
• Compatible rope: EN 1891 Type A, 11 mm
• Dimensions: 203 × 127 × 102 mm
• Weight: Approximately 2.3 kg
• Water resistance: IP66
• Replaceable rope wheel: Yes
• EN 12841:2024 Type B/C working load: 30–285 kg
• ANSI Z359.9:2021 Type 4 working load: 30–240 kg
• EN 341:2011 Class 2A working load: 30–195 kg
• Certification: CE 0123

Downloads

Please refer to the AWAH Z3-FIRE Drill Powered Ascender instructions for more information.
