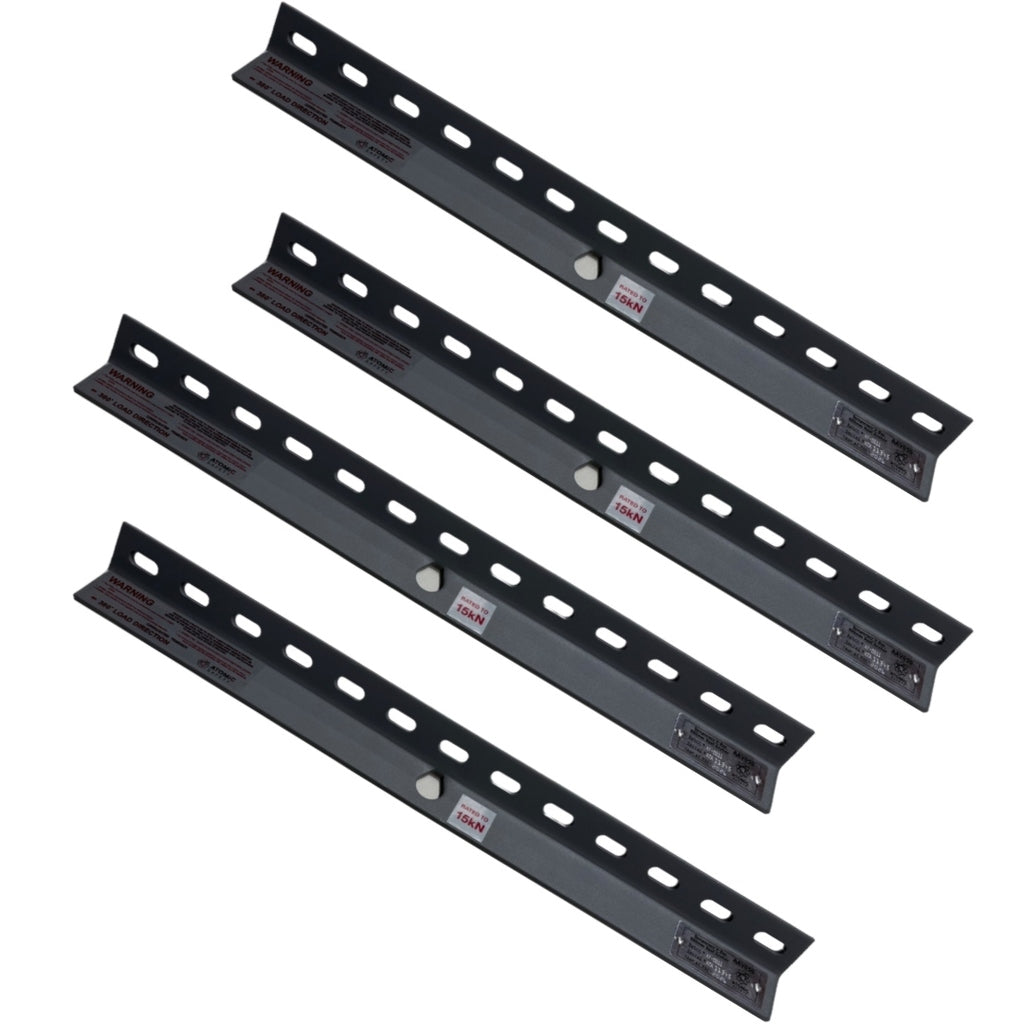

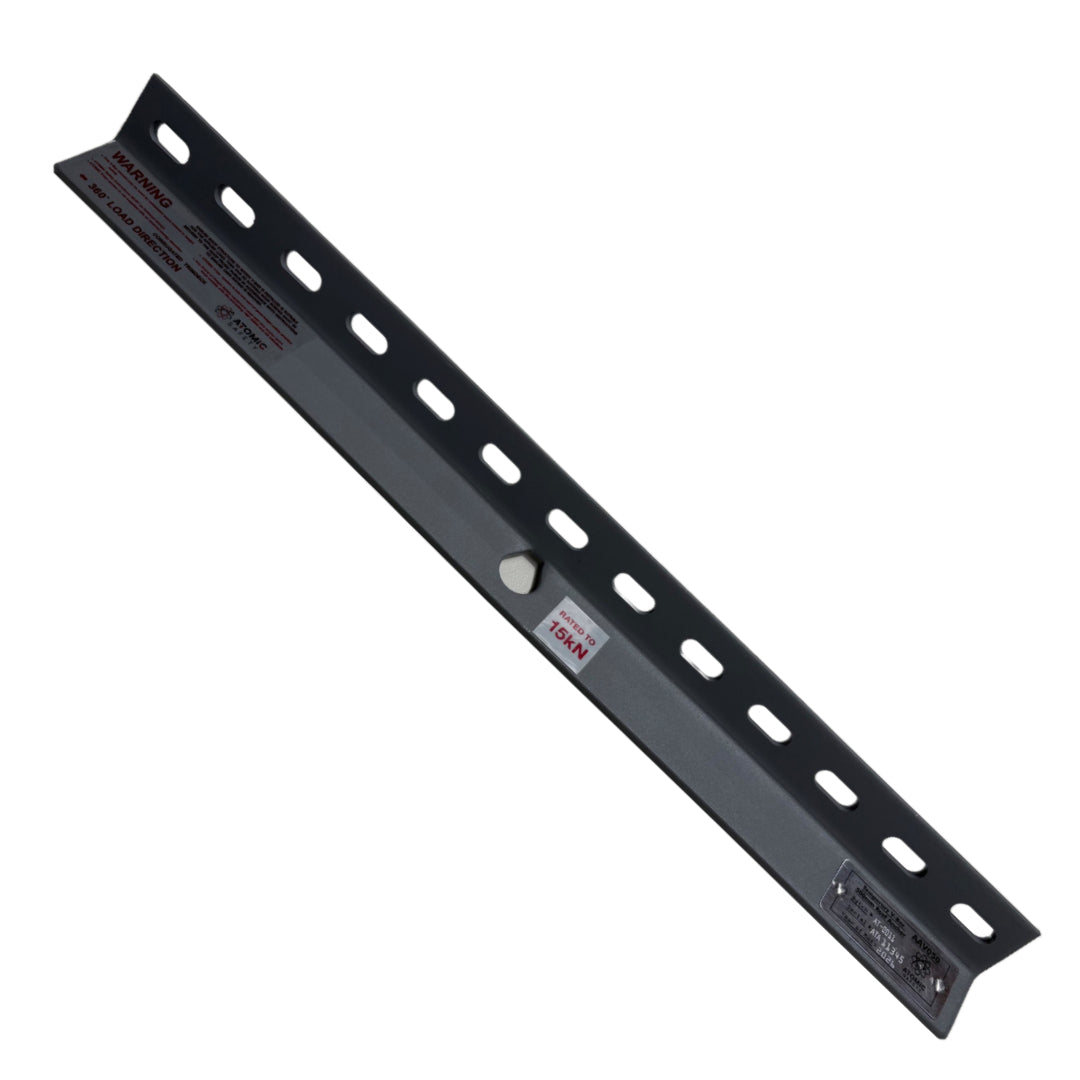

ATOMIC Safety V-Anchor Plate

ATOMIC Safety V-Anchor Plate

The ATOMIC Safety V-Anchor Plate is a temporary roof anchorage point designed for trained height-safety users. Rated to 15 kN, it is suitable for a single-person travel restraint or fall arrest system when correctly installed on an appropriate metal roof structure.

The ATOMIC Safety V-Anchor Plate is available in 500 mm sizes, the plate features a keyhole attachment point for connection to compatible personal fall-protection equipment. An external compliant energy absorber must be used, as the plate does not contain an internal energy-absorbing device.

Features

• Temporary roof anchor for trained and competent height-safety users
• Keyhole attachment point for a compatible karabiner
• Suitable for 360-degree work on flat metal roofs
• Designed for single-person travel restraint or fall arrest
• Removable and reusable, subject to inspection requirements
• Must be used with a compliant external energy absorber
• Not suitable for abseiling, lifting equipment or multi-person connection

Specifications

• Anchor rating: 15 kN
• User capacity: One person
• Roof compatibility: Trimdek or corrugated metal roof sheeting
• Minimum roof-sheet base metal thickness: 0.43 mm
• Minimum fasteners: Three suitable heavy-duty roof screws
• Recommended fasteners: Five suitable heavy-duty roof screws
• Minimum fastener penetration: 35 mm
• Inspection: Before each use and every 12 months by a competent person
• Maximum service life: 5 years
• Applicable standard: AS/NZS 1891.4

Downloads

Please refer to the ATOMIC Safety V-Anchor Plate instructions for installation, inspection and maintenance information.
